Reynaers Aluminium
SLIMLINE 38
With its sleek steel-look design, the SlimLine 38 high-insulation system is ideal for any modern project. These durable aluminium windows, refined over the years, provide boundless design flexibility through their various minimalist options.
Planning advantages
Slim steel-look design in multiple styles
A future-proof and durable window solution
Crisp, high-quality finishes in every detail
Performance characteristics
Thermal insulation
Passive:
Uf = 1.9 W/m²K
Uw = 0.96 W/m²K
Air-Water-Wind
Extreme:
4/E900/C4
Acoustics
High:
Rw(C;Ctr) = TuTi: 45(-1;-5) dB
Burglar resistance: PAS 24 – RC2
System Dimensions:
Min. Frame – Vent Width: 67 mm
Depth Frame: 99 mm
System limitation:
Max. Height Vent: 2800 mm
Max. Weight Vent: 170 kg
Processing advantages
Concealed Hinges
Details define the design; concealed hinges provide a refined finishing touch
Concealed Drainage
Experience clean lines with no visible plastic cover caps
Flyscreen
Relish cool summer evenings without sacrificing comfort
Balustrade
Where safety meets aesthetic appeal
TECHNICAL DATA & DOWNLOADS
Download supporting documents & brochures here
Slim Line 38 Functional Door Inward & Outward Opening DWG
Slim Line 38 Functional Window Inward Opening DWG
SlimLine 38 Classic /Cubic/ Ferro – Additional Profiles DWG
SlimLine 38 Classic /Cubic/ Ferro – Additional Profiles
SlimLine 38 Classic Windows – Inward Opening DWG
SlimLine 38 Classic Windows – Inward Opening
SlimLine 38 Classic Windows – Outward Opening DWG
SlimLine 38 Classic Windows – Outward Opening
SlimLine 38 Cubic Windows – Inward Opening DWG
SlimLine 38 Cubic Windows – Inward Opening
SlimLine 38 Cubic Windows – Outward Opening DWG
SlimLine 38 Cubic Windows – Outward Opening

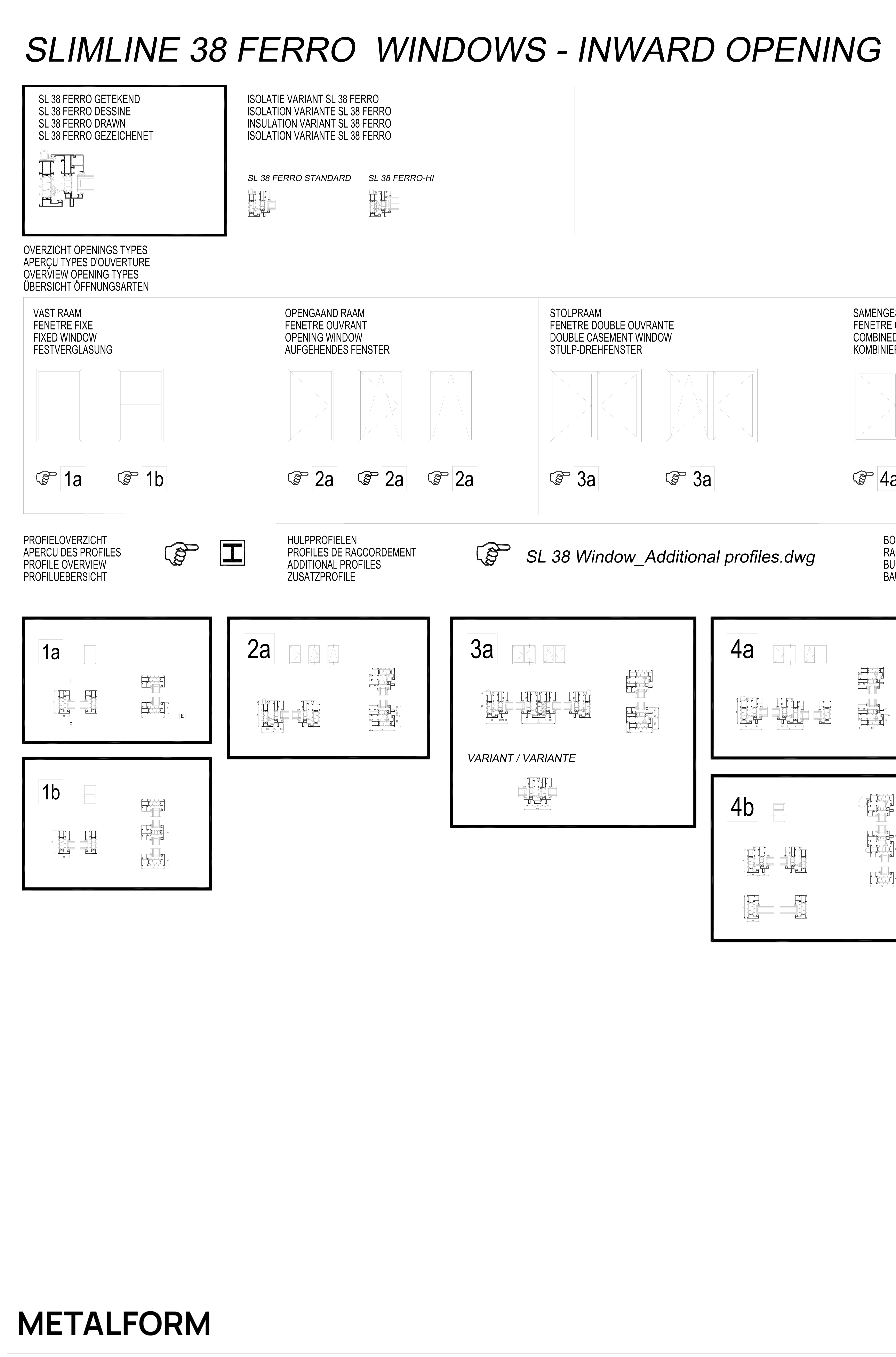

SlimLine 38 Ferro Windows – Inward Opening DWG
SlimLine 38 Ferro Windows – Inward Opening
SlimLine 38 Ferro Door – Inward & Outward Opening DWG
SlimLine 38 Ferro Door – Inward & Outward Opening

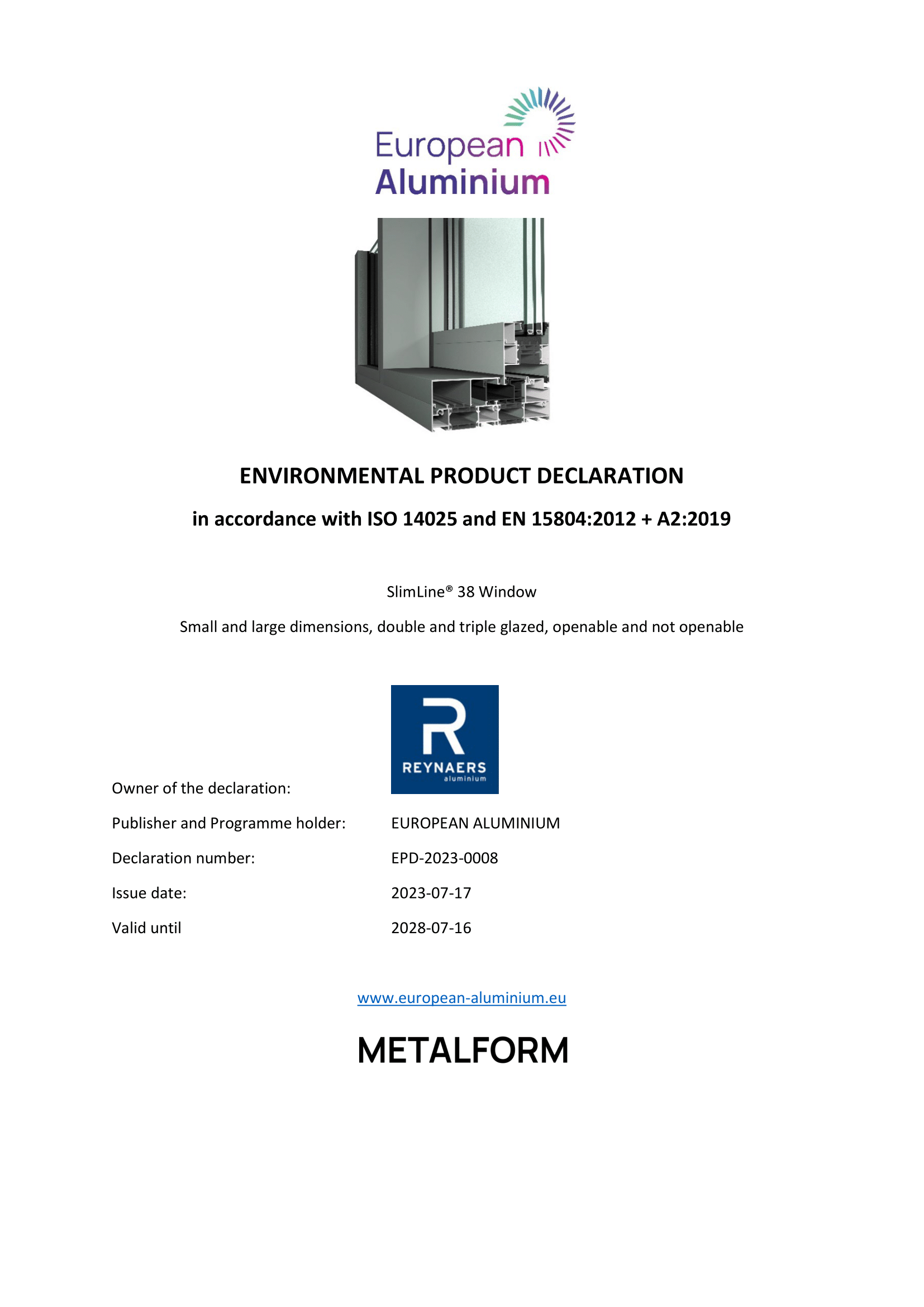

ENVIRONMENTAL PRODUCT DECLARATION SlimLine® 38 Window

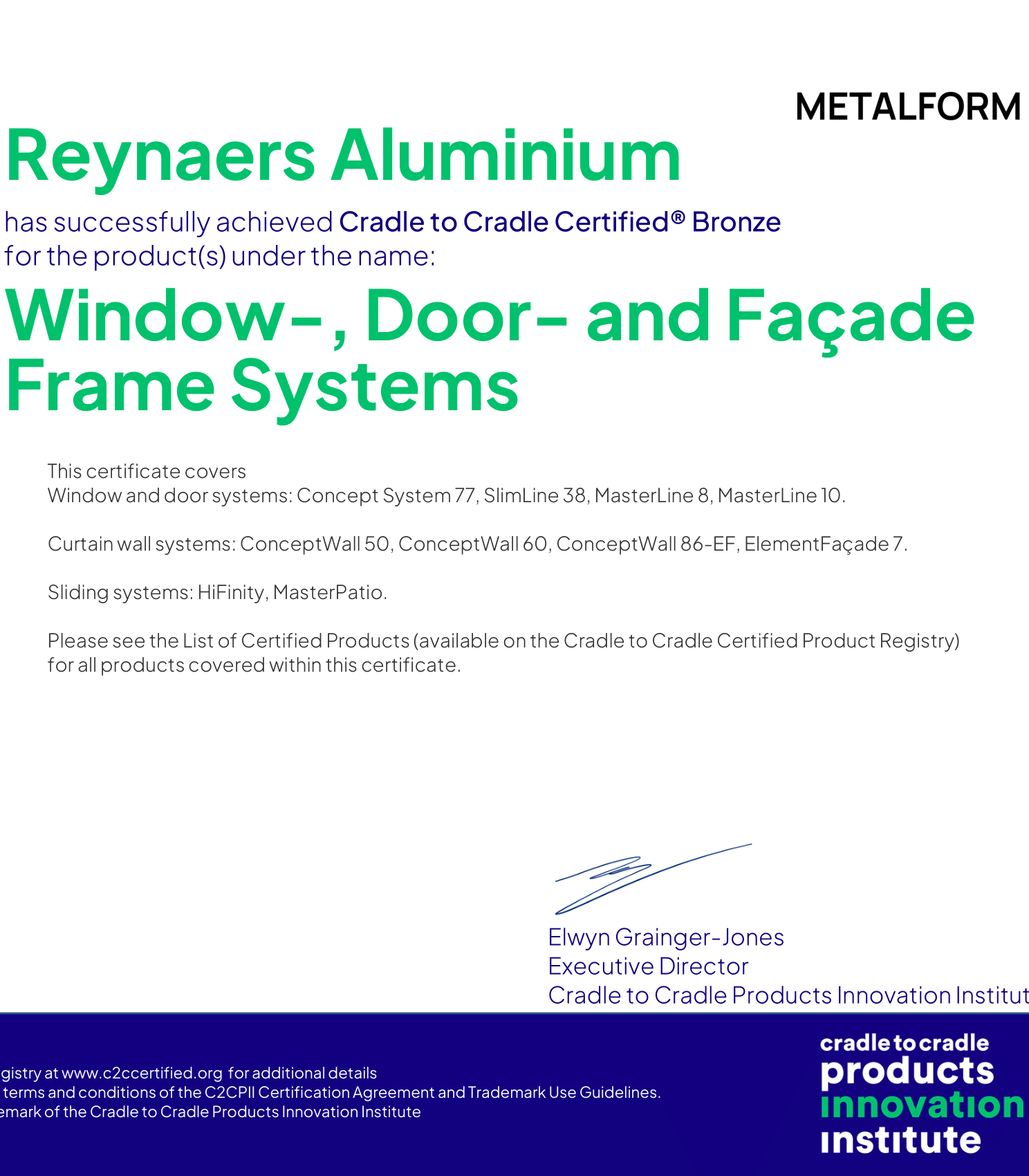

Cradle to Cradle Certified® Bronze
Magnetic contacts Product flyer
SlimLine 38 Windows ZIP (Archicad)
SlimLine 38 Windows ZIP (Revit)
SlimLine 38 Windows
